Categorical Data Analysis¶
Statistical methods for count data, contingency tables, and inter-rater agreement — the bread and butter of survey analysis, quality control, and clinical diagnostics.
Setup¶
Single Proportion Tests¶
A survey finds 58 out of 100 respondents prefer the new design. Is this significantly different from 50%?
Exact Binomial Test¶
result = pl.select(
ps.binom_test(successes=58, n=100, p0=0.5).alias("binom")
)
b = result["binom"][0]
print(f"Estimate: {b['estimate']:.2f}")
print(f"Statistic: {b['statistic']:.2f}")
print(f"p-value: {b['p_value']:.3f}")
print(f"CI: [{b['ci_lower']:.3f}, {b['ci_upper']:.3f}]")
Expected output:
Normal Approximation (Z-test)¶
result = pl.select(
ps.prop_test_one(successes=58, n=100, p0=0.5).alias("prop")
)
p = result["prop"][0]
print(f"Estimate: {p['estimate']:.2f}")
print(f"Statistic: {p['statistic']:.2f}")
print(f"p-value: {p['p_value']:.3f}")
print(f"CI: [{p['ci_lower']:.3f}, {p['ci_upper']:.3f}]")
Expected output:
Neither test rejects the null at alpha=0.05. The 58% preference is not statistically distinguishable from 50%, though the confidence interval suggests the true preference could be anywhere from about 48% to 67%.

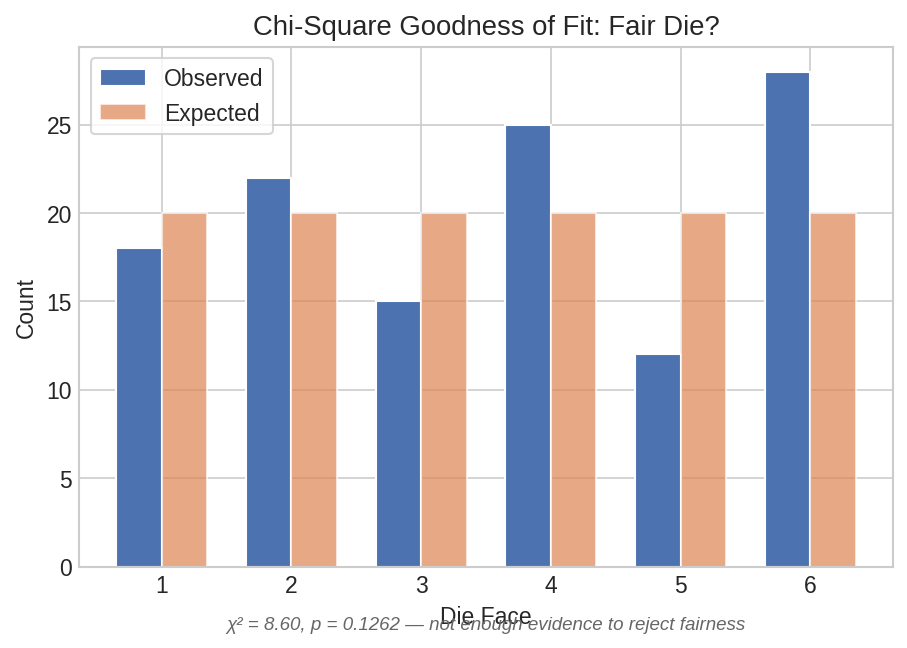

Goodness of Fit¶
A die is rolled 120 times. Are the results consistent with a fair die?
observed = pl.DataFrame({"counts": [18, 22, 15, 25, 12, 28]})
result = observed.select(
ps.chisq_goodness_of_fit("counts").alias("gof")
)
gof = result["gof"][0]
print(f"Chi² statistic: {gof['statistic']:.2f}")
print(f"p-value: {gof['p_value']:.3f}")
print(f"df: {gof['df']}")
Expected output:
At alpha=0.05, we cannot reject the null hypothesis of equal proportions — the die is consistent with fair. However, p=0.098 is borderline; a larger sample might reveal a real bias.
Plot code
import matplotlib.pyplot as plt
import numpy as np
faces = ["1", "2", "3", "4", "5", "6"]
obs = [18, 22, 15, 25, 12, 28]
expected = [20] * 6
x = np.arange(len(faces))
w = 0.35
fig, ax = plt.subplots(figsize=(7, 4))
ax.bar(x - w/2, obs, w, label="Observed", color="#4C72B0")
ax.bar(x + w/2, expected, w, label="Expected (fair)", color="#DD8452", alpha=0.7)
ax.set_xticks(x)
ax.set_xticklabels(faces)
ax.set_xlabel("Die Face")
ax.set_ylabel("Count")
ax.set_title("Goodness of Fit: Die Fairness")
ax.legend()
plt.tight_layout()
plt.savefig("cat_goodness_of_fit.png", dpi=150)
Likelihood Ratio Test (G-Test)¶
The G-test is an alternative to Pearson's chi-square for contingency tables. Test independence in a 2x2 table:
# Contingency table (row-major flattened):
# Success Failure
# Group A: 45 55
# Group B: 35 65
ct = pl.DataFrame({"counts": [45, 55, 35, 65]})
result = ct.select(
ps.g_test("counts", n_rows=2, n_cols=2).alias("g")
)
g = result["g"][0]
print(f"G statistic: {g['statistic']:.3f}")
print(f"p-value: {g['p_value']:.3f}")
print(f"df: {g['df']}")
Expected output:
No significant association between group membership and outcome.
Paired Proportions — McNemar's Test¶
Before and after a treatment, patients are classified as positive or negative. The off-diagonal cells measure change:
# Contingency table:
# After + After -
# Before +: 40 15 (b=15 improved)
# Before -: 5 40 (c=5 worsened)
result = pl.select(
ps.mcnemar_test(a=40, b=15, c=5, d=40).alias("mcnemar")
)
m = result["mcnemar"][0]
print(f"Chi² statistic: {m['statistic']:.1f}")
print(f"p-value: {m['p_value']:.3f}")
print(f"df: {m['df']}")
Expected output:
Significant at alpha=0.05: the change from before to after is asymmetric — more patients improved (b=15) than worsened (c=5).
McNemar's Exact Test¶
For small cell counts, use the exact binomial version:
result = pl.select(
ps.mcnemar_exact(a=40, b=15, c=5, d=40).alias("exact")
)
e = result["exact"][0]
print(f"Statistic: {e['statistic']:.1f}")
print(f"p-value: {e['p_value']:.3f}")
Expected output:
Inter-Rater Agreement¶
Two raters independently classify 100 items into 3 categories. How well do they agree?
# 3x3 confusion matrix (row-major flattened):
# Rater B: Cat1 Cat2 Cat3
# Rater A: Cat1: 30 5 2
# Cat2: 3 28 4
# Cat3: 1 3 24
ratings = pl.DataFrame({"counts": [30, 5, 2, 3, 28, 4, 1, 3, 24]})
result = ratings.select(
ps.cohen_kappa("counts", n_categories=3).alias("kappa")
)
k = result["kappa"][0]
print(f"Kappa: {k['estimate']:.3f}")
print(f"SE: {k['statistic']:.3f}")
print(f"p-value: {k['p_value']:.6f}")
Expected output:
A kappa of 0.73 indicates substantial agreement (0.61-0.80 is "substantial" on the Landis-Koch scale).
Plot code
import matplotlib.pyplot as plt
import numpy as np
matrix = np.array([[30, 5, 2], [3, 28, 4], [1, 3, 24]])
categories = ["Cat 1", "Cat 2", "Cat 3"]
fig, ax = plt.subplots(figsize=(5, 4.5))
im = ax.imshow(matrix, cmap="Blues", aspect="auto")
for i in range(3):
for j in range(3):
color = "white" if matrix[i, j] > 15 else "black"
ax.text(j, i, str(matrix[i, j]), ha="center", va="center",
color=color, fontsize=14, fontweight="bold")
ax.set_xticks(range(3))
ax.set_xticklabels(categories)
ax.set_yticks(range(3))
ax.set_yticklabels(categories)
ax.set_xlabel("Rater B")
ax.set_ylabel("Rater A")
ax.set_title(f"Inter-Rater Agreement (κ = 0.729)")
fig.colorbar(im, ax=ax, shrink=0.8)
plt.tight_layout()
plt.savefig("cat_agreement_heatmap.png", dpi=150)
Association Measures¶
Phi Coefficient¶
For 2x2 tables, the phi coefficient measures the strength of association:
result = pl.select(
ps.phi_coefficient(a=45, b=55, c=35, d=65).alias("phi")
)
phi = result["phi"][0]
print(f"Phi: {phi['estimate']:.3f}")
Expected output:
Contingency Coefficient¶
ct = pl.DataFrame({"counts": [45, 55, 35, 65]})
result = ct.select(
ps.contingency_coef("counts", n_rows=2, n_cols=2).alias("cc")
)
cc = result["cc"][0]
print(f"Contingency coefficient: {cc['estimate']:.3f}")
Expected output:
Both measures indicate a very weak association (values below 0.1 are typically considered negligible).
Choosing the right association measure
- Phi coefficient: Only for 2x2 tables. Ranges from -1 to 1.
- Cramer's V: Generalizes phi to larger tables. Always non-negative.
- Contingency coefficient: Bounded above by a value less than 1 (depends on table size).
See A/B Testing for chi-square test of independence, Cramer's V, and Fisher's exact test.
